Phase Change Material Integration in 2026 Cockpit Cooling Systems

Introduction to the PCM Cockpit Cooling Concept

Driver cooling in Formula 1 remains a critical challenge, especially as ambient temperatures rise and cockpit packaging constraints tighten. The challenge is to maintain driver physiological performance by effectively managing heat loads within a strictly regulated cockpit volume dedicated to driver thermal management. Our approach leverages phase change material (PCM) technology to augment the driver cooling system's thermal capacity. The PCM system is strategically integrated with aerodynamic surfaces embedded in the cooling housing to maximize synergy between thermal management and airflow control. Regulatory compliance is paramount, particularly under Articles C14.6.1 through C14.6.6 and C3.7.6, which include strict rules on component placement, airflow aperture enlargements, and aerodynamic surface geometry. The PCM device's positioning respects the official cockpit thermal management space boundaries and adheres to aperture sizing rules that restrict enlargement solely for driver cooling air supply.

Thermal Design and PCM Selection

The thermal design centers around a eutectic salt mixture PCM, specifically selected for its phase change temperature range between 6.5C and 9.5C to satisfy cooling requirements below the 10C threshold mandated by the regulations. The eutectic composition primarily includes sodium acetate trihydrate combined with minor additives to stabilize cycling performance and reduce supercooling effects. Approximately 1.5 kilograms of this PCM is encapsulated within the heat exchanger, providing a latent heat storage capacity that exceeds the 1.1MJ minimum thermal energy reserve required by regulation C14.6.1.b.

This thermal reserve enables the PCM to absorb significant driver-generated heat during peak periods without allowing cockpit temperatures to rise excessively. Validation methods include differential scanning calorimetry (DSC) to verify phase change temperatures and latent heat capacity, complemented by in-situ temperature cycling tests under simulated driver heat loads. These validation steps confirm that the PCM consistently melts and re-solidifies within the operational temperature window, maintaining performance over an expected lifecycle of 50+ thermal cycles per season.

The thermal exchange surface area of the PCM heat exchanger is approximately 0.05 m9, which is compact relative to the cockpit volume but optimized for high heat transfer rates. This surface area is roughly equivalent to the frontal exposure of a driver cooling duct and is carefully balanced between space constraints and thermal requirements.

Aerodynamic Integration and Aperture Management

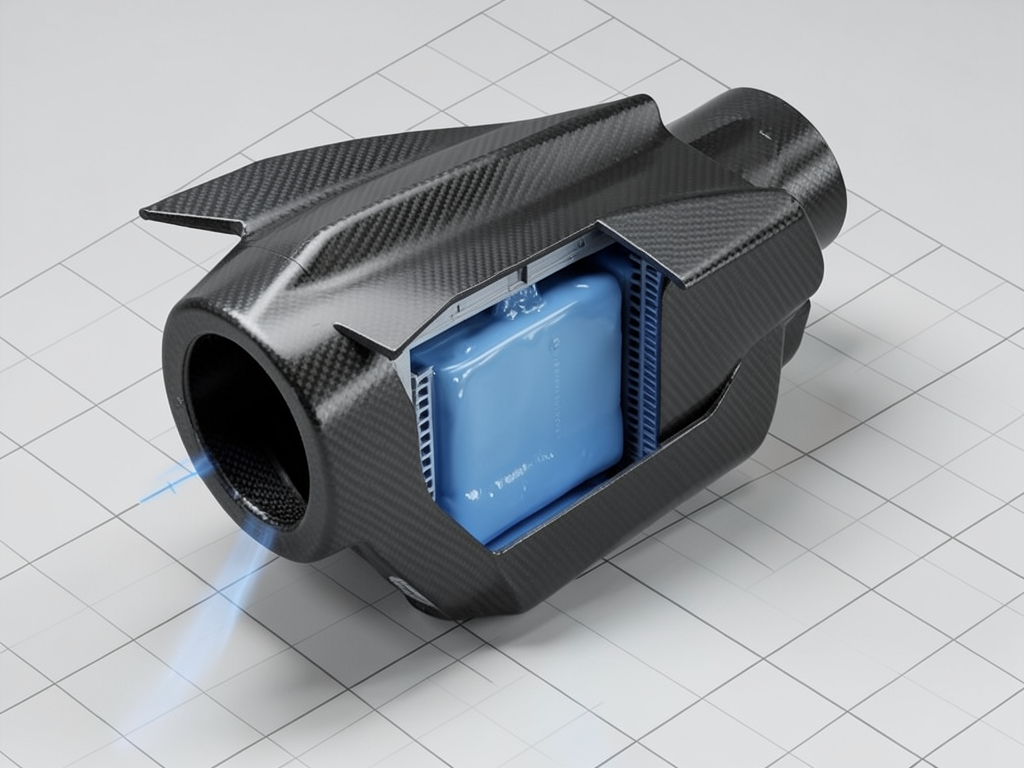

The PCM heat exchanger housing is sculpted with aerodynamic surfaces including winglets and smooth contours, all designed with a radius of curvature no less than 10mm to comply fully with Article C3.7.6. These surfaces are deliberately positioned for maximum visibility from the mandated inspection angles, ensuring regulatory approval while contributing to airflow management.

The system utilizes the permitted aperture enlargement of exactly 1000 mm9 (per Article C14.6.6) exclusively to supply fresh air to the PCM cooling exchanger. Airflow paths are optimized through detailed CFD simulations, which show streamlined delivery of cooling air to the PCM unit, minimizing turbulence and pressure losses. Furthermore, the design harnesses localized low-pressure zones at winglet trailing edges to generate subtle downforce increments without compromising pure cooling function.

The optimized aerodynamics extend to the driver suit's outlet ducting, which has a cross-sectional area of approximately 180 mm9, shaped to encourage efficient airflow exit and reduce aerodynamic drag. Physical inspections, alongside CAD and CFD validation, are used to conclusively demonstrate that aerodynamic surfaces meet all minimum radius and visibility criteria, while strictly supporting the sole purpose of driver cooling air supply.

System Placement and Regulatory Compliance

System placement is confined to the designated cockpit thermal management space allocated for driver cooling components, following the stipulations of Article C14.6.5. FIA approval was pursued and obtained based on comprehensive documentation of the system’s size, location, and purpose.

Maintaining compliance with the "sole purpose" clauses of Articles C14.6.6 and C3.16.1 means the enlarged aperture is used exclusively to supply cooling air, with no secondary aerodynamic or power unit cooling purposes. The cooling medium selected is water, approved under Article C14.6.4, ensuring adherence to fluid restrictions. The PCM system avoids any use of latent heat of vaporization to cool the power unit, consistent with Article C5.22.2, thus preventing regulatory conflicts.

Additionally, the system design guarantees that engine intake air temperature margins remain above the required 10C differential per Article C5.13.8, by isolating driver cooling heat rejection pathways from engine air intake systems. This careful thermal segregation prevents unintended cooling or intake air temperature drops while permitting potential small aerodynamic gains.

Manufacturing and Quality Assurance Challenges

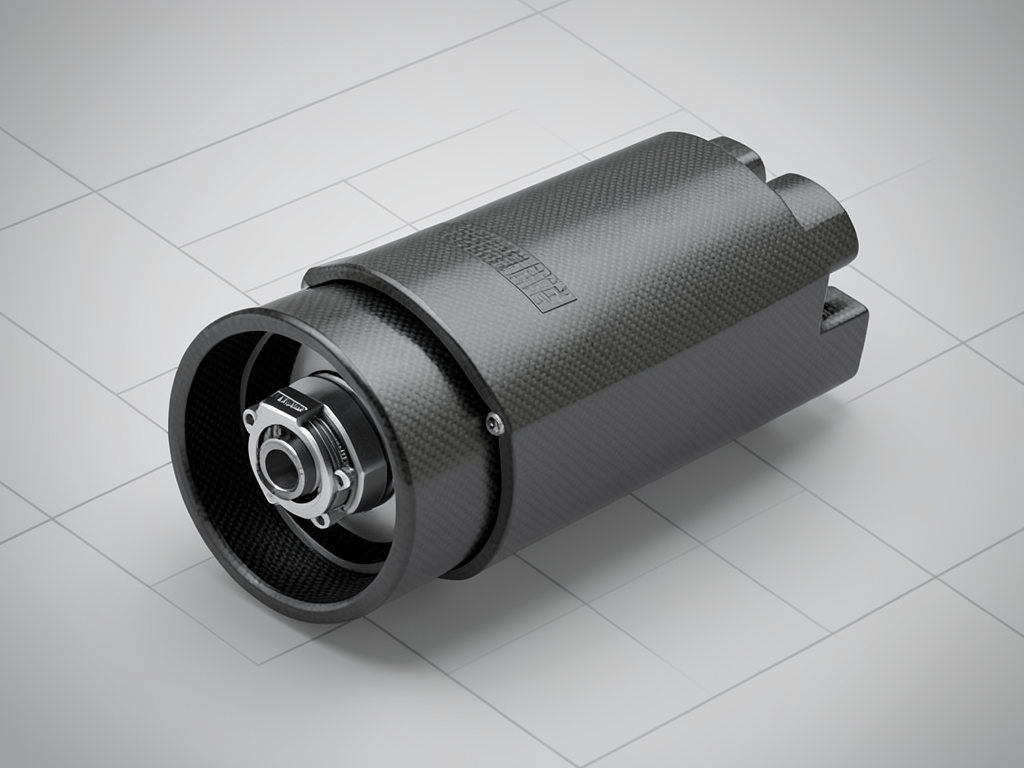

The PCM heat exchanger housing is produced using pre-preg carbon fibre composite layups, cured in carefully controlled autoclave cycles to achieve consistent mechanical strength and an ultra-smooth surface finish necessary for aerodynamic compliance. Multi-axis CNC machining ensures that all aerodynamic surfaces meet the precise +/- 0.2mm tolerance requirements for minimum radius curvature.

Stringent quality control processes include ultrasonic non-destructive testing (NDT) of composite layups to detect delamination or voids, alongside vacuum sealing of the PCM containment vessel to prevent leaks. Certification of the PCM material batch verifies phase change properties and latent heat capacity. Assembly occurs in a cleanroom environment to minimize contamination risks.

Leak testing of the sealed PCM containment under a range of pressure and temperature conditions validates long-term integrity, crucial to avoid performance degradation during thermal cycles. This thorough approach ensures the cooling system's structural and functional reliability across race conditions.

Testing, Validation, and Failure Mode Mitigations

Extensive regulatory checks underpin the system validation. The PCM mass is verified precisely against the 1.5 kg target to maintain thermal capacity, preventing loss of latent heat storage that could reduce driver cooling effectiveness under race stresses.

Phase change temperature and latent heat capacity are verified using calibrated DSC measurements and dynamic thermal cycling tests to ensure consistent operation within the regulatory window. Aerodynamic surfaces undergo 3D laser scanning and visual inspections to confirm curvature and visibility compliance, guarding against any regulatory disqualification.

CFD analyses and physical smoke testing validate that the enlarged aperture serves exclusively the driver cooling air supply, with no redirected airflow benefiting other car systems. The cooling medium is certified water, ensuring fluid compatibility with FIA restrictions.

Mitigation strategies address potential failure modes such as PCM overheating, mitigated by designing sufficient mass and heat exchange surface area, and incorporating temperature monitoring for critical threshold alerts. Aerodynamic surface non-compliance risks are managed through rigorous CAD and manufacturing quality checks.

The system also adheres to engine intake air temperature margin rules, with thermal simulations confirming no detrimental effects. If active fans are incorporated for airflow circulation, power consumption is kept within regulatory limits and strictly dedicated to driver cooling circuits.

These multi-layered tests and risk mitigations collectively ensure the PCM driver cooling system delivers enhanced performance without compromising compliance or reliability in the demanding F1 environment.
